Beacon Tracking Gateways
Track people within your facility in real time with Guard1 active Beacon Tracking wristbands, ID badges or asset tags. Guard1 provides the zone location of people and things, and gives you alerts for out-of-bounds and keep-separates.
Guard1 tracking works with a Gateway infrastructure installed at your facility. Tags send a signal once per second to the Gateways and the Guard1 Real Time engine determines their location.
How Beacon Tracking Gateways unlock the future of safety technology:
Real time
Gateways placed strategically throughout your facility receive signals from a variety of Guard1 equipment - like Beacon Tags and Duress Devices - to give you real time insight into your facility.
Hands-off
Once installed, Gateways are a "hands-off" technology. Powered by ethernet, they automatically update your Guard1 software and require no physical scanning.
Zone based
Gateways continuously receive signals and update your Guard1 software with updated zone locations for individuals and objects in your facility, 24/7/365.

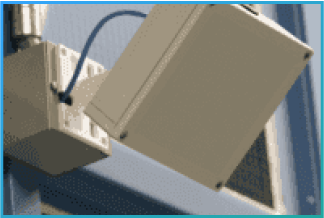

Rugged
The simplest mounting is covert mounting in a suspended ceiling if available. If not, a hard plastic case is used. It's passed a rigorous battery of shock testing and is built to last.
Customers use Gateways to:
Get real time movement alerts

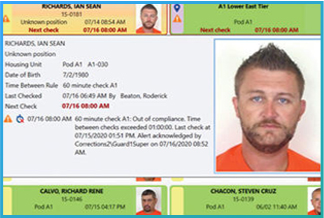

Always know where individuals are located
Have a complete log of movement history
Customers who use Gateways typically also use:
LaserPrint Wristbands
ID Badges
Duress Devices
Beacon Tracking Tags
Guard1 Real Time Software
Gateway: Technical Specs
Part Number
-
- Gateway, Indoor - GATEWAY-001

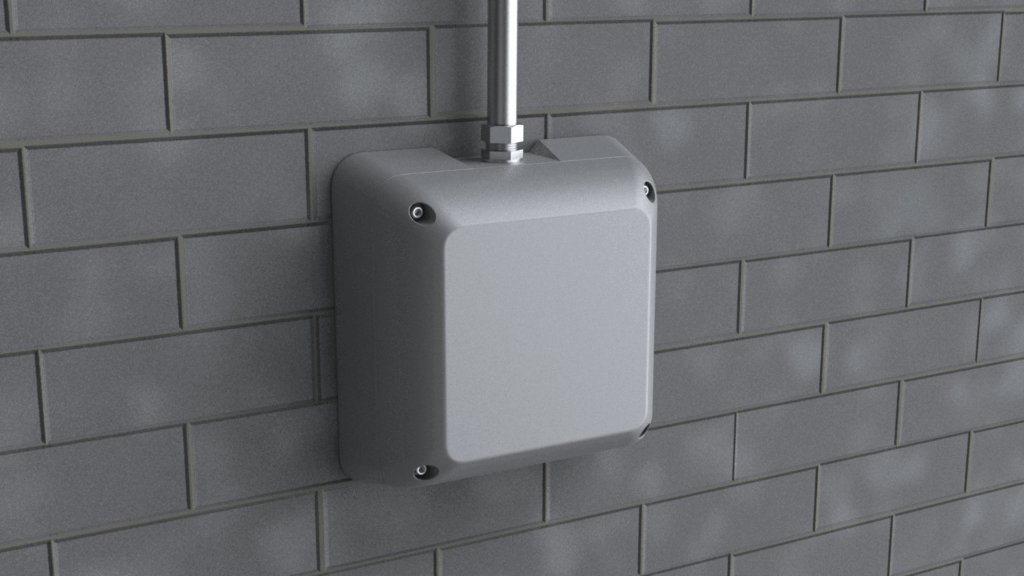

- Gateway, Indoor/Outdoor (pictured) - GATEWAY-002
- Requires MOUNT-BASE
Mechanical
-
- GATEWAY-00x Housing Material - Polycarbonate resin blend
- GATEWAY-001 Dimensions - 4.5" W x 1.0" H x 5.6" D
- GATEWAY-002 Dimensions - 9.5" W x 9.5" H x 2.4" D
- MOUNT-BASE Dimensions - 10.4" W x 10.4" H x 2" D
Electrical
-
- RF Transmission Frequency - 2.4GHz
- Class 1 Power Over Ethernet (POE) device
- Power consumption - 1.5W typical, 3.84W max
- Data Interface - 10/100 Ethernet
Environmental
-
- Operating Temperature - -40 to 185 degrees F, (-40 to 85 degrees C)
- Flammability Rating (GATEWAY-002 only) - UL94 V0
- Ingress Rating (GATEWAY-002, and GATEWAY-001 when installed within MC-58-1100-02) - IP67
Regulatory
- Device complies with - Part 15 of the FCC Rules and CAN ICES-3 (A)/NMB-3 (A)
